Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Start Port: | Guangzhou |
|---|---|
| Production Capacity: | 400 units/Month |
| Place of Origin: | Guangdong, China |
| Payment: | D/P, T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal |
| MOQ: | 1 unit |
| Delivery Time: | Within 7 working days |
| Certification: | ISO 9001 |
| Brand: | OEM/Lvyuan |

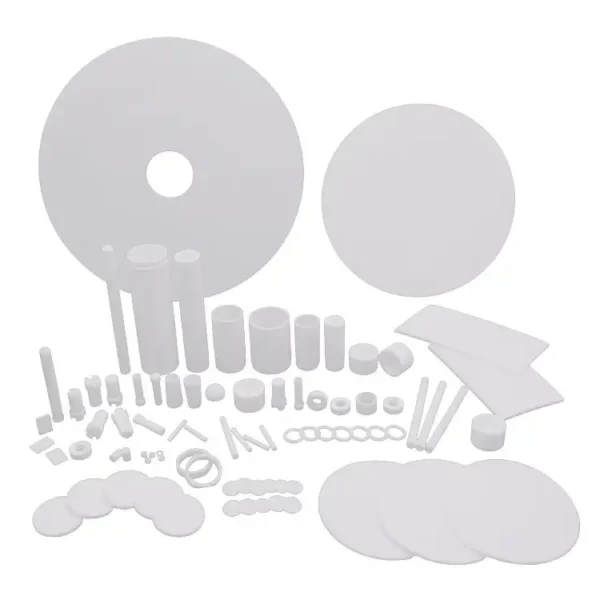

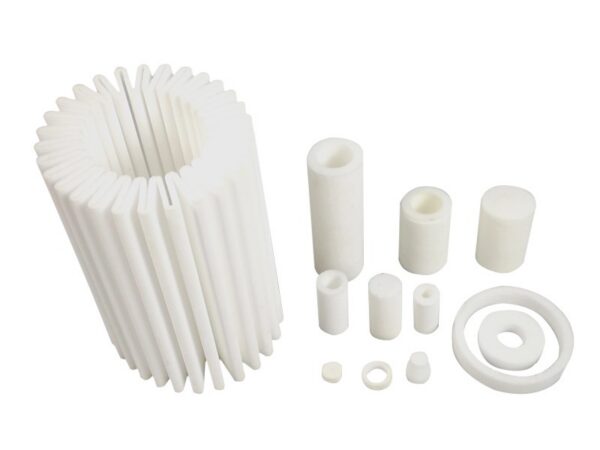

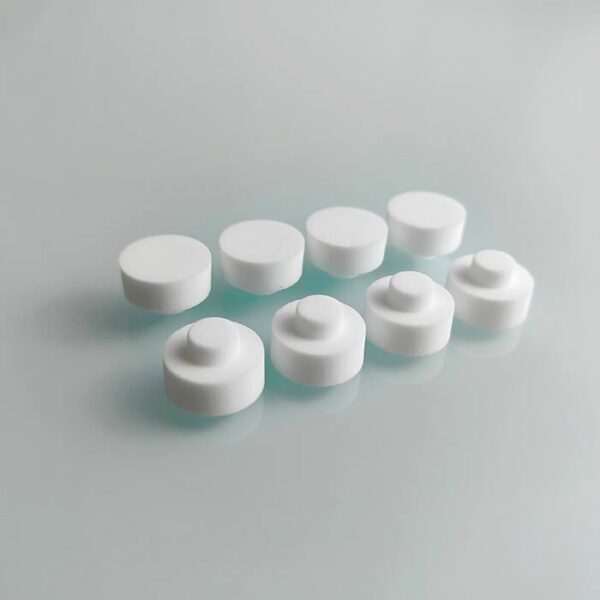

◆◆ Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.

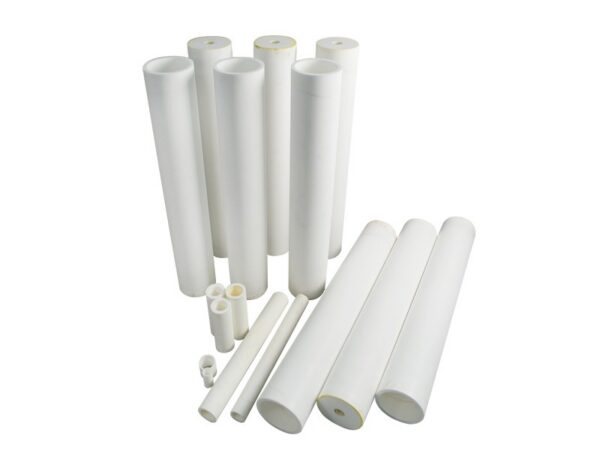

PE and HDPE Sintered filter cartridge：
Sintered Porous Polyethylene (PE) products are the most commonly used plastic filter element in the world. Porous PE plastics is strong, lightweight thermoplastic with strong chemical (acids and alkali) resistance and wide micron rates from 1 to 200um. There’re Ultra-high molecular weight Polyethylene (UHMWPE) and High-density Polyethylene (HDPE) available in tubes, sheets, rods and molded shapes available for different applications.
PTFE Sintered filter cartridge:
Micro Porous PTFE filter elements are produced by sintering pure PTFE (Polytetrafluoroethylene) granules, no other substances are used in the construction. These filter elements are usually offered when only 100% pure disposable PTFE can be used. The advantage of PTFE is a higher maximum temperature, up to 200℃, and somewhat better chemical resistance. These filter elements should be ultrasonically cleaned to give best results.
PVDF Sintered filter cartridge:
Sintered porous PVDF (Polyvinylidene fluoride) products are good choices when expose to harsh thermal, ultraviolet, ozone and chemical conditions. Porous PVDF prdoucts is extreme hard and with average pore size of 25 micron. It can work in temperature from -62 to 149℃.
PA/Nylon Sintered filter cartridge:
Nylon, trade name for polyamides (PA), is a semi-crystaline polymer that contains amine and carbonyl groups. There’re numerous versions. Nylon/PA has high strength and thermal resistance with a softening termperature of 190℃. Working temperature from -40℃ to 121℃, sintered PA/Nylon porous products have very high tensile strength, good abrasion and chemical resistance, and low coefficient of friction.
Product Feature
| Fiter Cartridge dimensions | |
| Regular size (mm) | 31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc. |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media option | PE, HDPE, PTFE, PVDF, PA/Nylon etc |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | PP, M36, M30, M25, M22, M14, M12, or as request. |
| Performance | |
| Removal rate | 0.3, 0.45, 1, 3, 5, 10,20, 30, 40, 50 μm |
| Maximum Operating Temperature | ≦ 82 ℃ |
| Maximum Operating Pressure | 6.0bar |
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
