Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Start Port: | Guangzhou |
|---|---|
| Production Capacity: | 500 units/Month |
| Place of Origin: | Guangdong, China |
| Payment: | T/T, Western Union, Alibaba Trade Assurance, paypal |
| MOQ: | 10 pcs |
| Model: | LY-HFMH |
| Delivery Time: | within 7 working days |
| Brand: | OEM/Lvyuan |

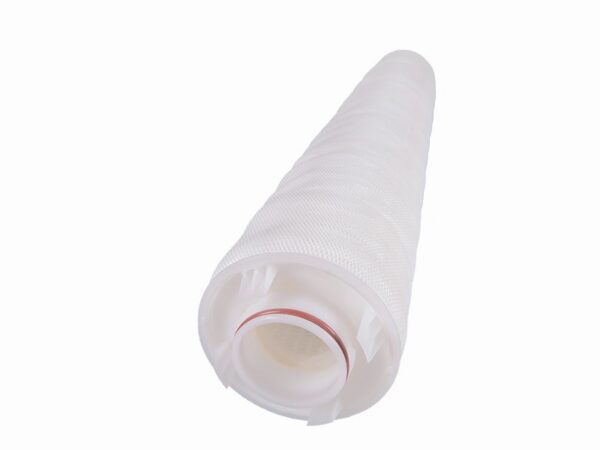

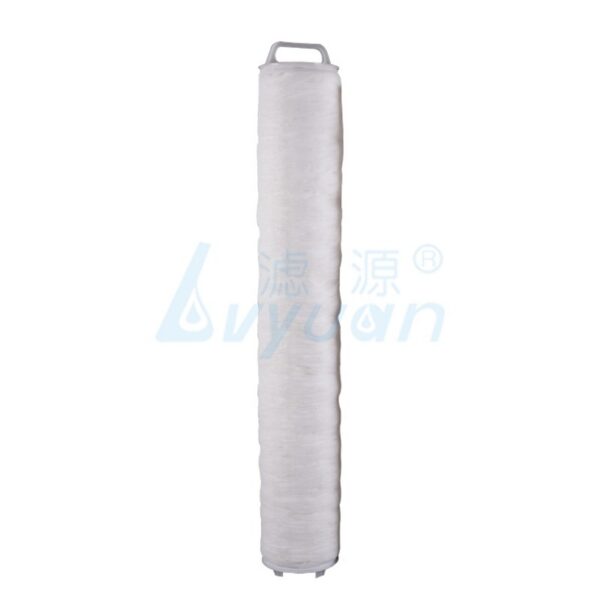

The LY-HFMH filter cartridge is adopted horizontal pleated technology and use specialized machinery equipment to produce standardized products efficiently.
This reduces the lead time of production and makes the products be in competitive price.
This filter cartridge series is designed to be used in the different filter housing which contains 1-37 filter cartridges. It can uses for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridge has various applications on water treatment system.
Product Feature
| Product Name | replacement high flow water pleated cartridge filter (LY-HFMH) |
| Filter media | Polypropylene/PP membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR |
| Outer diameter | 6.5”(165mm) |
| Length | 20”, 40”, 60”, or Customized |
| Max.operating temperature | 82℃ |
| Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
★ Friendly handle design easily for operator change out.
★ Highly consistent performance and 100% constructed by advanced polypropylene media.
Ro water treatment
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
