This article reviews 10 key filter element testing methods, including SEM, bubble point, and dynamic tests, providing insights into precision, advantages, and industry applications.
In the field of high-precision filtration, such as industrial manufacturing, medical and pharmaceutical, food and beverage, the choice of filter element has a direct impact on product quality and production efficiency. Pleated filter cartridges are becoming the preferred solution in many industries due to their innovative pleated structure design, high filtration efficiency and wide chemical compatibility. In this article, we will comprehensively analyze the technical value and market potential of pleated cartridge from the dimensions of definition, type, core advantages, application scenarios and future trends, combined with authoritative data and external link resources.

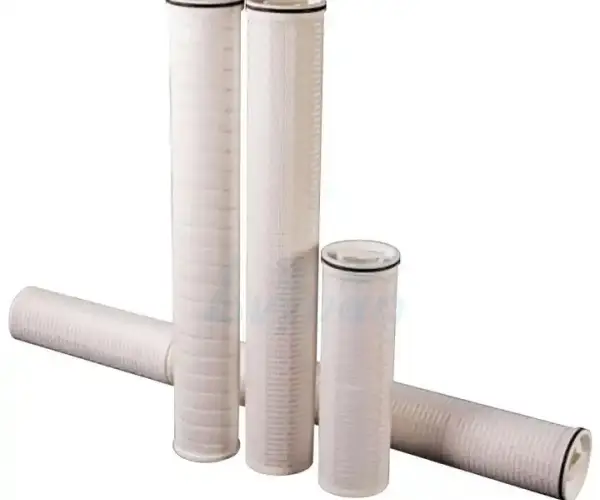

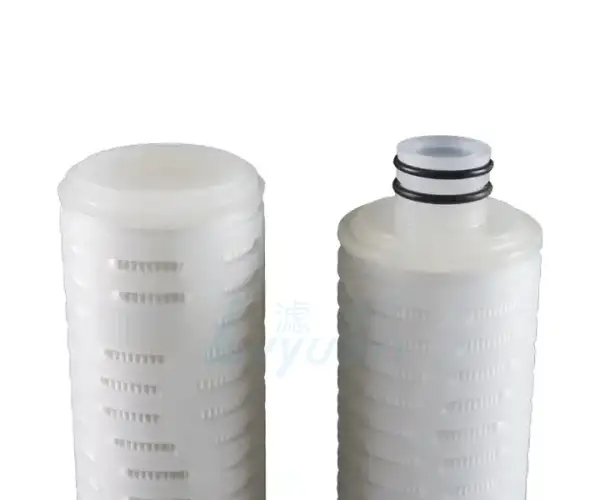

Pleated filter cartridge is a kind of high-efficiency filtration element through pleated membrane layer wrapped around the center support structure, whose design significantly increases the effective filtration area (usually 3-5 times higher than the traditional filter bag), so as to improve the filtration efficiency and dirt-holding capacity. The structure is formed by folding the filter material (such as polypropylene, polyester fiber or glass fiber) to form multiple pleats, providing a larger contact area for the same volume, suitable for high flow rate and high precision scenarios.
Key Features:
According to the material and process differences, pleated filter cartridge can be divided into the following types, each with unique advantages:
| Type | Material | Core Advantages | Typical Applications | Micron Rating |
| PP (Polypropylene) Pleated filter Cartridges | Polypropylene | Acid and alkali resistant, low cost, autoclavable | Food & Beverage, Pharmaceuticals, Water Treatment | 0.1-100 µm |
| Glass Fiber Pleated filter Cartridge | Glass Fiber + Nano Coating | High temperature (200°C+), anti-static | Chemical, Microelectronics | 0.2-50 µm |
| Polyester Pleated filter Cartridge | Polyester Nonwoven | Washable, Anti-stretch | Dust Removal, Air Purification | 1-50 µm |
| PTFE (Polytetrafluoroethylene) Pleated Cartridge | PTFE coated | Superhydrophobic, corrosion resistant | Petrochemical, desalination | 0.02-10 µm |
| Activated Carbon Composite Pleated Cartridge | Activated Carbon + PP skeleton | Adsorption of organics, residual chlorine | Drinking water purification, medical dialysis | 1-50 µm |
Technology trend: Nano-fiber coating further improves the retention efficiency and soot removal performance of the filter element.
The pleated structure increases the filtration area by 300%-500%, increases the flow rate by 40% under the same volume, and reduces the energy consumption of the blower (by 15%-20%).
Anti-fouling and clogging design reduces the frequency of downtime and replacement, and the comprehensive operation and maintenance cost is reduced by 30%. For example, after an automotive parts manufacturer adopted pleated cartridges, annual maintenance costs dropped by 42%.
Absolute filtration precision (0.1 micron level) can intercept microorganisms and submicron particles to meet the requirements of pharmaceutical sterility (USP Class VI).
Resistant to strong corrosive chemicals (e.g. hydrofluoric acid) and high temperature steam sterilization, suitable for the demanding needs of pharmaceutical and electronic industries.
Pleated filter cartridges have become the “all-around guardian” in the field of precision filtration due to their technological innovation and scene-adapting ability. From pharmaceutical sterility protection to microelectronic ultrapure water preparation, from low-cost water treatment to high-demand oil and gas filtration, its core advantages and industry value are constantly highlighted. With the progress of material science and intelligent manufacturing, pleated cartridge will further promote the green and efficient industrial filtration process.
